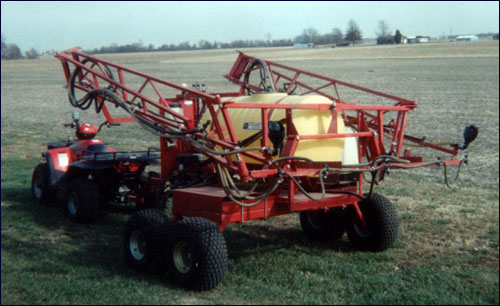

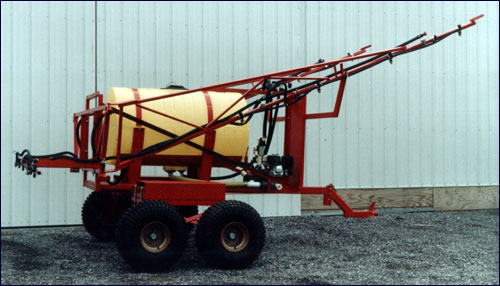

JM ATV MINI FLOATER SPRAYERS - BOLT-ON BOOM SERIES

Easy Pump Priming. Complete Tank Drainage when compared to Square Deal Sprayer. All these features at a Price only slightly above the Square Deal Sprayer.

STANDARD FEATURES:
  • 200 GALLON RAVEN DEEP SUMP ROUND TANK
  • WIDE OPEN TEE AGITATION, SWEEPS ACROSS TANK BOTTOM WITH FULL TIME VIGOROUS AGITATION
  • 5.5 H.P. HONDA MOTOR
  • ACE CENTRIFUGAL CAST IRON PUMP WITH VITON SEALS -- 650 HIGH CAPACITY PUMP
  • ELECTRIC SOLENOID VALVES (LOW AMP DRAW)
  • NYLON STRAINER WITH STAINLESS STEEL SCREEN
  • LIQUID STRAINED ONLY UPON NOZZLE DELIVERY
  • EACH BOOM SECTION CENTER FED (NO NOZZLE STARVING)
  • BOLT-ON BOOM -- HEIGHT ADJUSTMENT
  • 32.5' TRUSS-TYPE BOOM, OR 47.5' OR 50' SELF-LEVELING BOOM -- WITH CAST HINGES, SIDE FOLDS
  • QUICK TEE JET NOZZLE BODIES W/ DIAPHRAGM CHECK VALVES (NO DRIP)
  • QUICK TEE JET CAPS - QUARTER TURN LOCKS TIP INTO PLACE
  • BEAN BLASTER DOUBLE PLUMBED TURBO FLOOD JET, AND 110 DEGREE FLAT FAN TWIN JET STAINLESS TIPS
  • ADJUSTABLE HITCH HEIGHT (KEEPS SPRAYER RUNNING LEVEL & WEIGHT ONTO HITCH OF PULLING VEHICLE)
  • ADJUSTABLE AXLES 90" TO 120" WITH EXTERNAL CLAMPING
  • 2" BALL COUPLER WITH GREASE ZERK (KEEPS BALL GREASED WHILE HOOKED UP) AND SAFTY CHAIN
  • QUICKFILL MUD SHIELD KEEPS MOTOR DRY
  • 25" X 12" X 9" ATV HIGH FLOTATION TIRES
  • RED FRAME
  • YELLOW TANK

OPTIONAL EQUIPMENT:
  • JM GOOSENECK HITCH -- NAILS SPRAYER AND PULLING VEHICLE TO GROUND, GIVES SOLID STABILITY (FOR GEO TRACKER, SUZUKI SAMURAI, SMALL PICK-UP TRUCKS, 6 X 6, POLARIS RANGER, JD GATOR, ETC.)
  • FOAM MARKER
  • TEE JET GUIDELINE GUIDANCE SYSTEM
  • MT-3405 FII SPRAY CONTROLLER OR 844 E SPRAY CONTROLLER
  • CACL-AN-ACRE ACCURATE ACRE COUNTER & DIGITAL SPEEDOMETER PROVIDES TRUE GROUND SPEED
  • 15" WIDE RUBBER BELTED TRAK -- CONTINUOUS LOOP (PUTS A LARGE FOOTPRINT DOWN)
  • HIGH CAPACITY BOOM PLUMBING - FOR FERTILIZER WORK
  • SPECIAL BAR TIRES REQUIRE SPECIAL OPTIONAL LEVEE LEAPER AXLES -- 60" TO 90" OR 90" TO 120"
